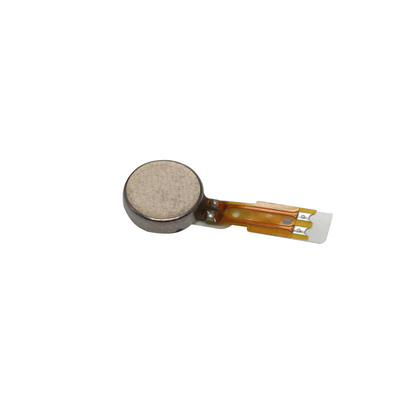

The Smallest ERM Coin Cell Vibration Motor with Customized PCB for Wearable Device C0720
| MPN | Rated voltage | Rated speed | Rated current | Starting voltage | Connection |
| C0720BE03F02 | 3 V DC | 8000 RPM Min | 85 mA Max | 2.5 V DC | PCB |
Outline Drawing
You also could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
1) Competitive Advantages
2) Production workshop (Part)
Worshop site 1 Worshop site 2
3) Testing equipments
4) Packing & Shipping
Packing Details
100pcs per tray, 20 trays per carton, 2000 pcs per carton
Carton size: 34cm*24cm*22cm
Gross weight: 8.5kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.
Shipping Details
Samples Can be shipped within 10 days.
Mass production order leading time according to the actual situation.
5) After-sales Service
When order complete,an email will be sent out to confirm the value and shipment methods.Then the shipment tracking number will be shared with email as always.100% strict inspection and test before shipment.Replace in one week once original defective goods found on arrival. Enjoy 1 year free replancement warranty.
